Original Element14 Raspberry Pi 3 Model B/B+ Plus，the Third Generation Pi A 1.4GHz 64-bit quad-core Cortex-A53 CPU
SPECIFICATIONS
Battery Included: No
Brand Name: cbhioarpd
Certification: CE
Choice: yes
Demo Board Type: ARM
Hign-concerned Chemical: None
Model Number: Raspberry Pi 3 Model B+
Origin: Mainland China
feature 1: 1GB LPDDR2 SDRAM
feature 2: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
feature 3: 4 USB 2.0 ports
feature 4: Extended 40-pin GPIO header
feature 5: A 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
semi_Choice: yes
Original Raspberry Pi 3 Model B Plus/Raspberry 3 Model B Board 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU with WiFi & Bluetooth
Features:

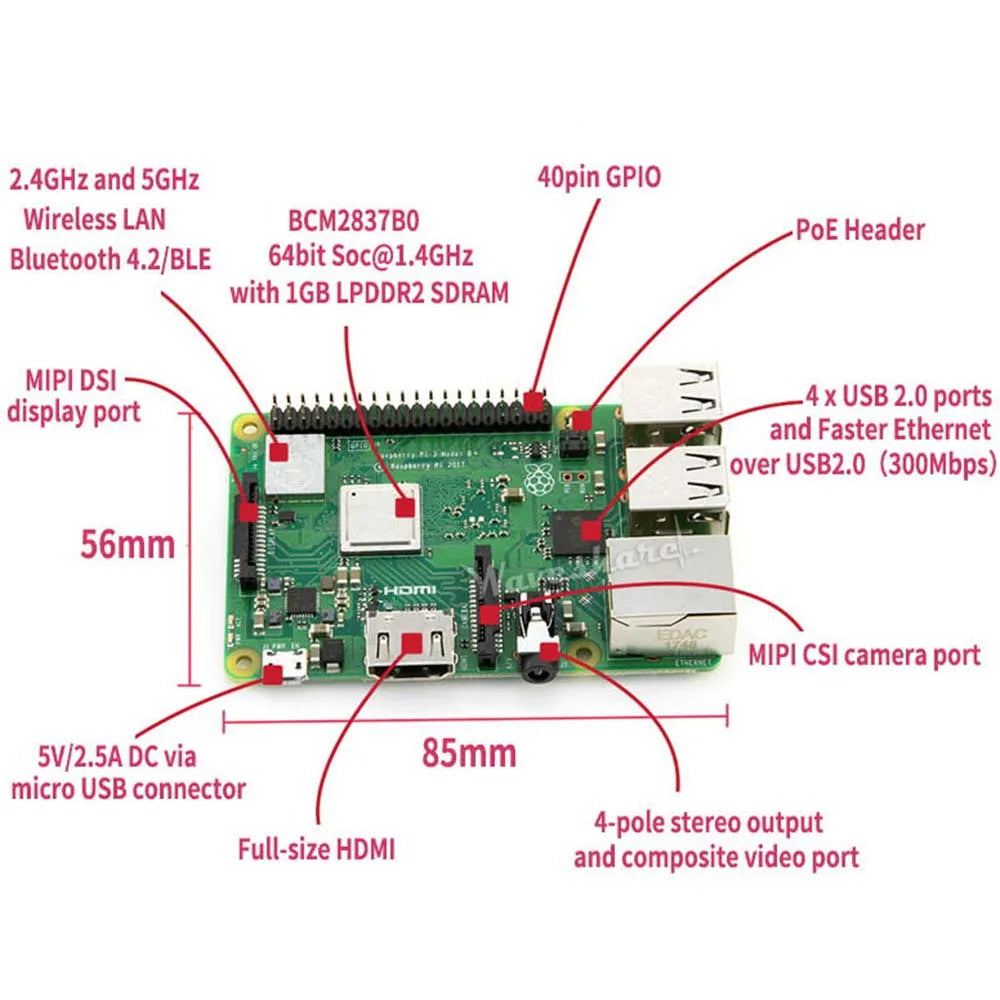

Raspberry Pi 3 Model B+ Board

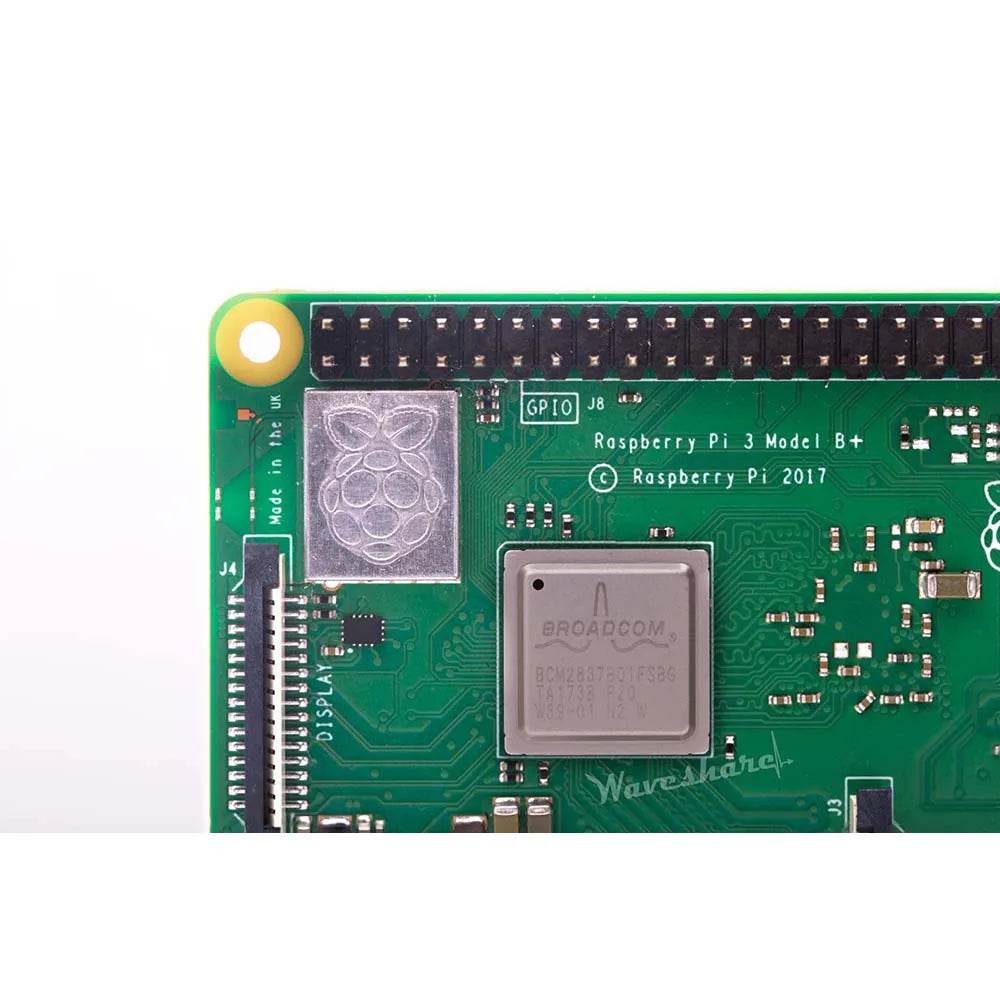

● Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
● 1GB LPDDR2 SDRAM
● 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
● Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
● Extended 40-pin GPIO header
● Full-size HDMI-compatible
● 4 USB 2.0 ports
● CSI camera port for connecting a Raspberry Pi camera
● DSI display port for connecting a Raspberry Pi touchscreen display
● 4-pole stereo output and composite video port
● Micro SD port for loading your operating system and storing data
● 5V/2.5A DC power input
● Power-over-Ethernet (PoE) support (requires separate PoE HAT)
Raspberry Pi 3 Model B
● Quad Core 1.2GHz Broadcom BCM2837 64bit CPU
● 1GB RAM
● BCM43438 wireless LAN and Bluetooth Low Energy (BLE) on board
● 100 Base Ethernet
● 40-pin extended GPIO
● 4 USB 2 ports
● 4 Pole stereo output and composite video port
● Full size HDMI-compatible
● CSI camera port for connecting a Raspberry Pi camera
● DSI display port for connecting a Raspberry Pi touchscreen display
● Micro SD port for loading your operating system and storing data
● Upgraded switched Micro USB power source up to 2.5A
Package List: ( option )
Option 1
1 × Raspberry Pi 3 Model B Plus
Option 2
1 × Raspberry Pi 3 Model B
