Khadas Mind Graphics Geforce RTX 4060 Ti eGPU/External Graphics Card Docking Station /16GB GDDR6/USB4/HDMI 2.1/Speaker/Mind-Link
SPECIFICATIONS
Brand Name: Khadas
Certification: CE,FCC,RoHS,UL,KC
Chip manufacturing process: 4nm
Funtion: HDMI-Compatible/Card Reader/RJ45
GPU model: NVIDIA GeForce RTX 4060 Ti
Graphics Processor Manufacturer: NVIDIA
Hign-concerned Chemical: None
Interface Type: USB Type-C,Mind Link Max Speed: 128 GT/s
Model Number: Graphics
Origin: Mainland China
Package: Yes
Plug Type: None
Ports: 12,4
Power interfance: 8pin
RAM Size: 16GB
RGB Light: Red/Blue/White/Orange/Green
Radiator Type: Double Fan
Resolution: 8K/60Hz
Scenes: Gaming/Design/Office/Workstation/Video Production/3D Modeing
Standard: USB 3.1
Type1: Graphics card dock station
Type2: Video Card
Video Output Interface: DisplayPort 2.1a, HDMI 1.4a
Video memory type: GDDR6
Video memory width: 128 Bit
Desktop-class GPU made to make it faster
Experience breathtaking next-gen graphics and smooth performance with the NVIDIA® GeForce RTXTM 4060 Ti desktop GPU. The advanced Ada Lovelace architecture enables Mind Graphics to multiply performance and simultaneously improve power efficiency. Whether it's AIGC, 3D rendering, video editing, or playing blockbuster games — watch as Mind Graphics easily handles GPU‑intensive tasks. Embrace an accelerated workflow and unleash your creative genius
Mind Link, unleash your GPU with double the bandwidth
See how much more you can do when you combine your Mind with Mind Graphics. The Mind Link interface supports up to 8-lane PCIe 5.0 bandwidth, offering a lightning-fast transfer speed of 128 GT/s2 — four times the bandwidth of Thunderbolt 43. When not bottlenecked by bandwidth, Mind Graphics achieves millisecond responsiveness to your every click and your every move, ensuring you can out-click and outpace your competition

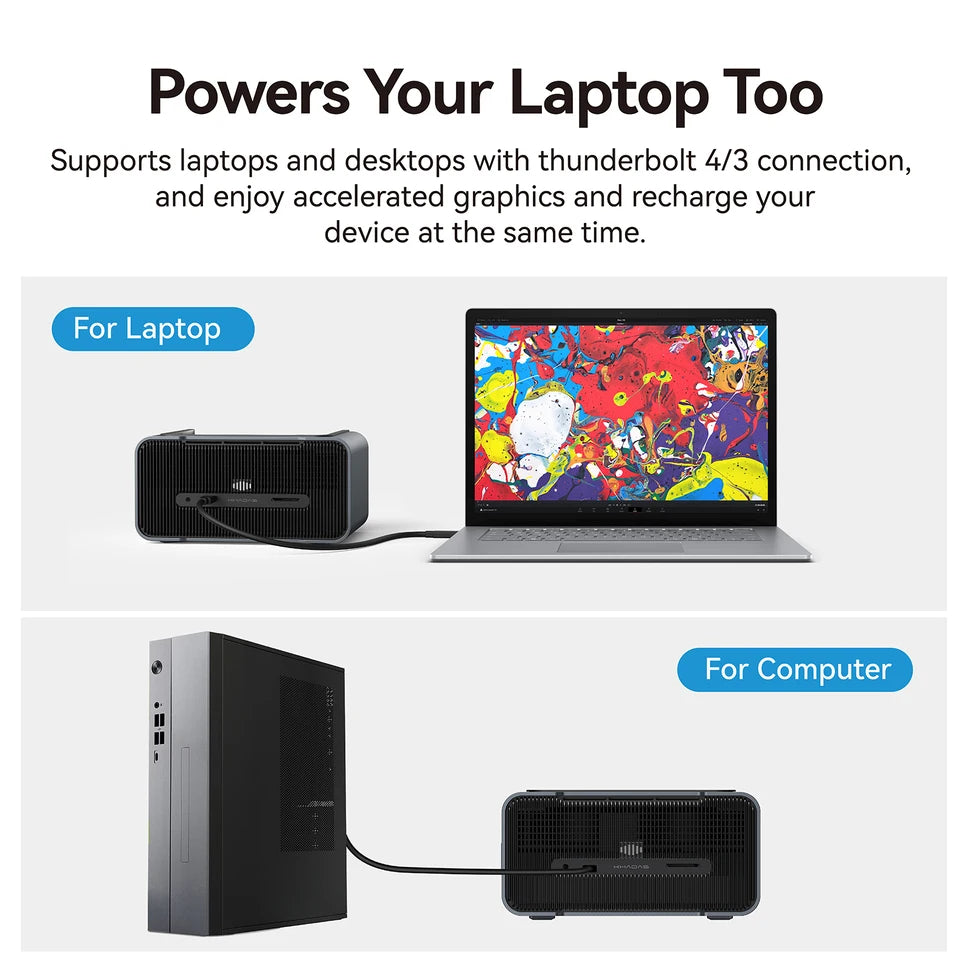

Versatile. Powers your laptop too.
The USB-C interface of Mind Graphics is compatible with Thunderbolt 4, Thunderbolt 3, USB4, and has USB-PD charging.
Connect your laptop or desktop computer to Mind Graphics, and merge with the power of the RTX 4060 Ti graphics card, to witness a performance leap4. Transform any thin-and-light laptop into a GPU powerhouse for all-day fun and productivity. Mind Graphics also recharges your laptop with up to 85W of power at the same time you create or game, so you don’t need a chunky power adapter anymore.
Effortless peripheral expansion.
No matter what your expansion needs are, Mind Graphics delivers with USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5Gbps ethernet, SD 4.0 card reader and a 3.5 mm headphone jack. Put your USB expansion hub aside and say hello to a sleeker desktop setup.

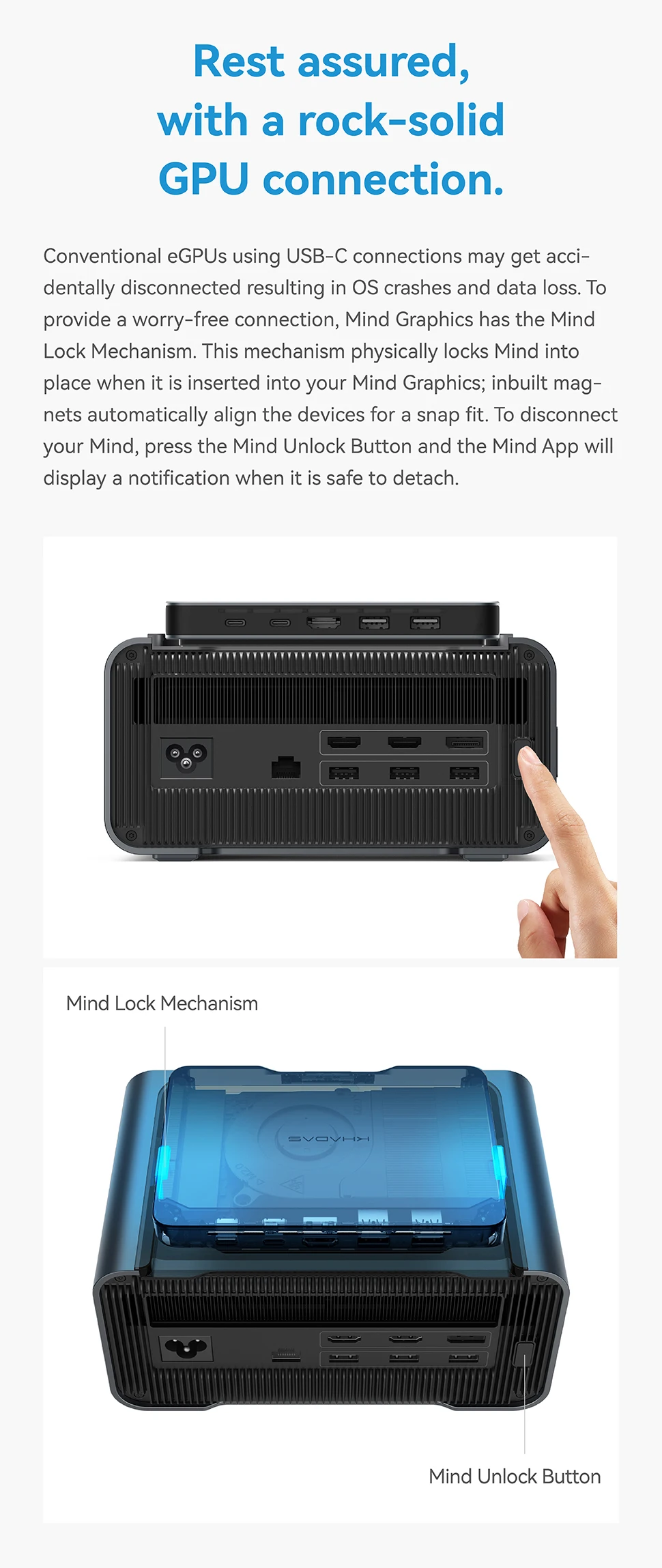

Rest assured, with a rock-solid GPU connection.
Conventional eGPUs using USB-C connections may get accidentally disconnected resulting in OS crashes and data loss. To provide a worry-free connection, Mind Graphics has the Mind Lock Mechanism. This mechanism physically locks Mind into place when it is inserted into your Mind Graphics; inbuilt magnets automatically align the devices for a snap fit. To disconnect your Mind, press the Mind Unlock Button and the Mind App will display a notification when it is safe to detach.
Physical buttons, ease of control.
Fingerprint reader with mute button.
Physical volume rocker.
Log into your Windows OS with just a touch, and quickly adjust the volume in busy situations.
More than just an eGPU.
Mind Graphics delivers lifelike ultra-HD visuals up to 8K resolution at a 60Hz refresh rate with the flexibility to connect to up to 4 external displays5.
But that’s not all, with the far-field microphone array, Mind Graphics enables you to clearly communicate your ideas in online meetings. There is no need to plug in headphones whenever you feel like speaking. It captures sound within a 3-meter radius, complete with noise reduction and voice enhancement features, ensuring crystal-clear voice delivery.
The dual-driver speaker is also expertly tuned to provide an immersive audio experience, effortlessly handling both high and low sound frequencies.
Exquisitely Designed
CNC unibody aluminum enclosure continuing Khadas’signature design language

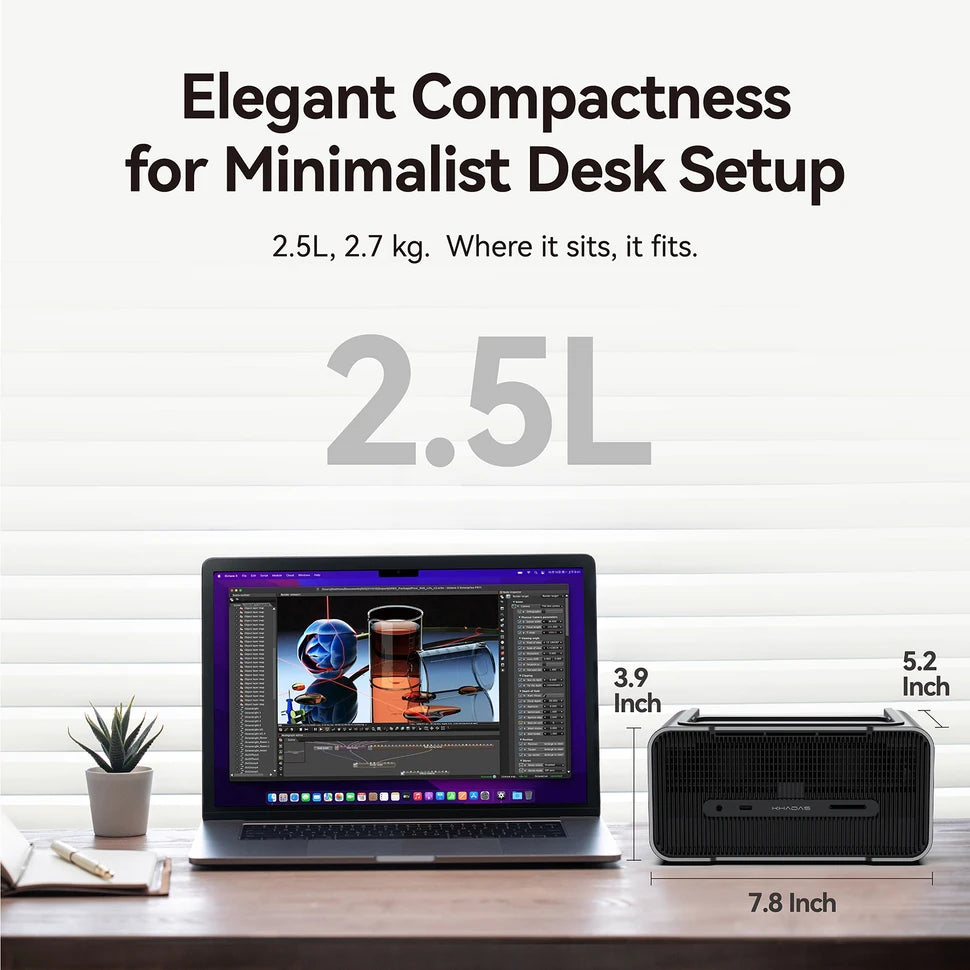

Ultra-compact, fits anywhere
Unique elegance, distinctive legacy.
The refined Al-Si-Cu cast alloy enclosure of Mind Graphics is manufactured using CNC unibody machining techniques and finished with an anodized oxidation process. Durable, minimalist, and elegant — continuing the distinctive design language of Khadas.
Show your ture colors.
Breathe life into your desk with dazzling RGB lighting. Customize the lighting effects to your taste using the Mind App.
Tech Specs
Dimensions: 199 mm × 133 mm × 100 mm
Weight: 2.7 kg
Graphics Card: NVIDIA GeForce® RTX™ 4060 Ti (Desktop GPU)
Architecture: Ada Lovelace
GPU Max Power: 160W
VRAM: 8GB GDDR6
Power: PSU Max Power: 300W
PSU Type: Integrated GaN
Power Delivery :
USB-C: 85W
Mind Link: 140W
Display Output⁵ :
HDMI 2.1a: up to 4K (240Hz), or 8K (60Hz)
DisplayPort 1.4a: up to 4K (240Hz), or 8K (60Hz)
Display Support:
Simultaneously supports up to 4 displays⁶ (Extend mode)
Mind Graphics :
HDMI: 4K (60Hz) × 2
DisplayPort: 4K (240Hz) or 8K (60Hz) × 1
Mind :
USB-C: 4K (240Hz) or 8K (60Hz) × 1
What's In The Box
1× Mind Graphics
1× AC Power Cable
1× Manual
1× Warranty Card
Note
1. Data provided by NVIDIA. 1920×1080 Resolution, Highest Game Settings. DLSS Super Resolution Quality Mode on GeForce RTX 20 Series, 30 Series, and 40 Series; Frame Generation on RTX 40 Series. i9-12900K, 32GB RAM, Win 11 X64. RTX 4060 Ti 8GB Model.
2. Mind Graphics supports 8-lane PCIe 4.0, providing up to 128 GT/s of transfer speed. Mind supports 4-lane PCIe 4.0, providing up to 64 GT/s of transfer speed when combined with Mind Graphics.
3. The data provided is based on the peak theoretical value of 8-lane PCIe 4.0 (128GT/s), benchmarked against Thunderbolt 4's PCIe speed of 32 GT/s.
4. Mind Graphics is compatible with laptops or desktop computers equipped with Thunderbolt 4 or Thunderbolt 3 ports.
5. The HDMI 2.1a and DisplayPort 1.4a ports support up to 4K (240Hz), or 8K (60Hz). To use the maximum resolution, a display supporting DSC is required.
6. When using the Extend mode, up to 3 displays can be connected to Mind Graphics simultaneously, and 1 display can be connected to Khadas Mind. Meanwhile, the remaining two ports on Mind (USB-C and HDMI) support display output in Duplicate mode.
Highlights
Performance Powerhouse: Khadas Mind Graphics boasts NVIDIA GeForceⓇ RTX™ 4060 Ti desktop GPU, the advanced Ada Lovelace architecture enables Mind Graphics to multiply performance and improve power efficiency. Whether it's AIGC, 3D rendering, video editing, or playing blockbuster games— watch as Mind Graphics easily handles GPU‑intensive tasks. Embrace an accelerated workflow and unleash your creative genius.
Versatile eGPU: The Khadas Mind Graphics supports both Mind Link interface and Thunderbolt3&4 USB-C connections, it is widely compatible with third-party laptops and desktops that have Thunderbolt ports. So, even if you don't have Khadas Mind, you can also use Mind Graphics to boost your laptop's GPU performance.
Compact & Stylish Design: CNC unibody aluminum enclosure continuing Khadas’ signature design language, ultra-compact at just 2.5 liters in volume. For those who pursue a minimalist desk setup, it will be your perfect "partner".
Rich Interfaces for Peripheral Expansion: In addition to the conventional USB-C, USB-A 3.2, HDMI, DisplayPort, 2.5Gbps ethernet, SD 4.0 card reader, and a 3.5 mm headphone jack, Mind Graphics is equipped with a fingerprint reader, which not only protects your privacy but also saves you from the trouble of entering your password. In addition, Mind Graphics also has a Mind Locking Mechanism, so you don't have to worry about accidental disconnection and potential data loss.
All-in-one Desktop Entertainment System: Mind Graphics delivers lifelike ultra-HD visuals up to 8K resolution at a 60Hz refresh rate with the flexibility to connect to up to 4 external displays. With the far-field microphone array, Mind Graphics enables you to clearly communicate your ideas in online meetings. The dual-driver speaker is also expertly tuned, effortlessly handling both high and low sound frequencies. Just sit back and enjoy your movie time with an immersive audio and visual experience provided by Mind Graphics.
Worry-free Warranty: Mind Graphics has a 1-year warranty starting from the order date. If there are any performance or component failures due to quality defects within the warranty period, you're entitled to free replacement or repair services. After the warranty expires, repair fees will be charged according to Khadas' official standards.
I/O Ports&Physical Buttons
I/O Ports:
1× USB-C (Support USB4/ThunderBolt4/ThunderBolt3)
3× USB-A 3.2 Gen 2 (10Gbps)
2× HDMI 2.1a (Supports 4K/240Hz or 8K/60Hz)
1× DisplayPort 1.4a (Supports 4K/240Hz or 8K/60Hz)
1× Ethernet (2.5Gbps)
1× SD Card 4.0（200MB/s）
1× Mind Link
1× Headphone Jack 3.5mm with Mic supported
2× Speaker(10W)
2× Far-field Microphone Array
Buttons:
1× Physical volume rocker
1× Mind Locking
1× Fingerprint reader with mute button
