SPECIFICATIONS

Application: Desktop

Brand Name: Intel

Chip Process: 10 NM

Choice: yes

Cooling system: No

Default TDP / TDP: 125

GPU-built: No

Hign-concerned Chemical: None

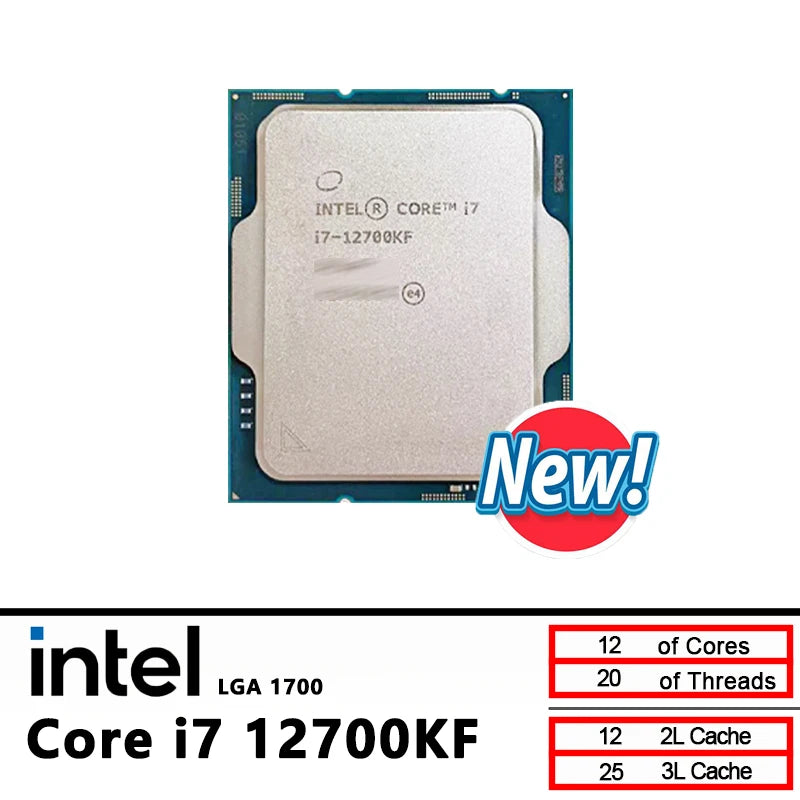

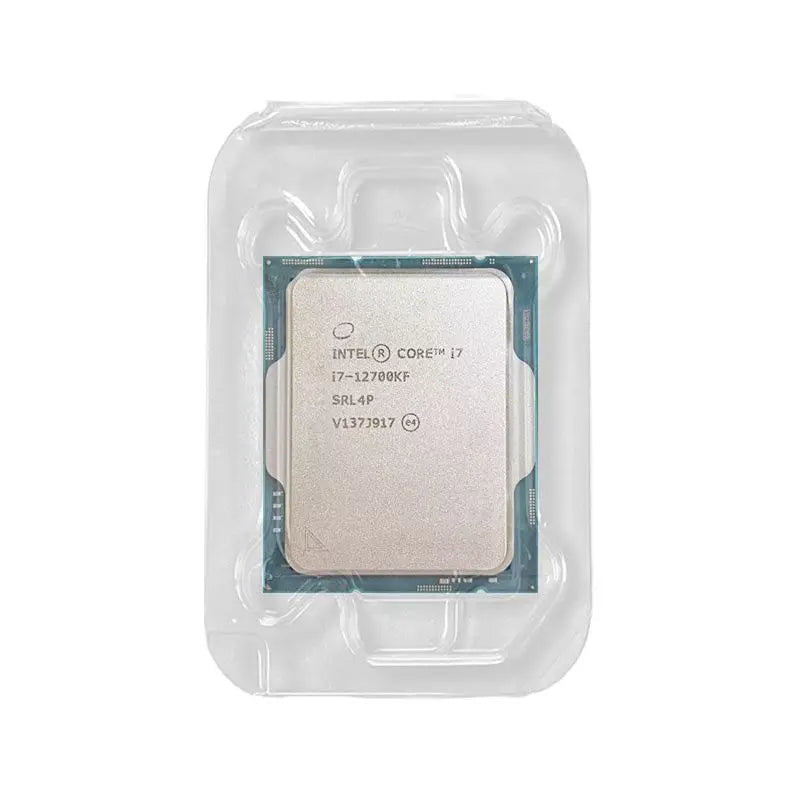

Intel Model: Intel Core i7-12700KF

L2 Cache Capacity: 12

L3 Cache Capacity: 25

Number OF Therads: 20

Number of Cores: Twelve Cores

Origin: Mainland China

PCIe VERSION: PCIe 3.0

Package: No

Processor Type: Intel Core

Socket Type: LGA 1700

Support Chipset Models: Intel Z690

Support Memory Channels: 2

Support Memory Type: DDR4

Type: Twelve-Core

Unlocked: No

Usage Scenario: others

he Intel Core i7-12700KF is the 12th generation Intel Core processor, mainly aimed at the mid to high end desktop market. Here is its introduction:

Core parameters: Adopting Intel 7 technology, it has 12 cores and 20 threads, including 8 performance cores and 4 energy efficiency cores. The fundamental frequency of the performance core is 3.6GHz, and the maximum turbo frequency can reach 4.9GHz; The fundamental frequency of the energy-efficient core is 2.7GHz, and the maximum turbo frequency is 3.8GHz. The cache is 25MB, the basic power consumption of the processor is 125W, and the maximum turbo power consumption is 190W.

Slot type: The slot type is FCLGA1700, which can be paired with Z690, B660 and other series motherboards.

Memory support: Supports DDR5 4800MT/s and DDR4 3200MT/s memory, with a maximum memory capacity of 128GB, a maximum of 2 memory channels, and a maximum memory bandwidth of 76.8GB/s.

Graphics Capability: The i7-12700KF is a non core graphics version that requires a dedicated graphics card to output images. It is suitable for users who already have a dedicated graphics card or plan to purchase one.

Technical features: Supports Intel Gauss and Neural Accelerator, Thread Director technology, Intel Turbo Boost Max technology 3.0, Intel Turbo Boost technology, Hyper Threading technology, etc., and also supports Intel Opotan memory.

Performance and positioning: The multi-core design enables it to perform well in multitasking, easily handling complex productivity tasks such as video editing, 3D modeling, etc. At the same time, its high turbo frequency also makes it perform well in single threaded performance, with strong gaming performance. Its positioning is mid to high end, suitable for gamers and professional users who have certain performance requirements
